ULTRA HIGH PERFORMANCE 3D PRINTER

PEEK-300

  • Ultra high temp. nozzle/bed

  • Advanced Thermal System

  • Direct Annealing System

  • Water cooling/ Heat isolation system

  • Medical/Industry application

Feature

Special Function

  • Outage Restored:Save data when power is off

  • Filament Detection:Pause printing when filament run out

  • Direct Annealing System (DAS):Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials.

  • Heat insulation:Triple heat insulation

  • Emergency stop switch:Support emergency stop

  • High temperature accessories:High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing.


Direct Annealing System

Direct Annealing System (DAS), the world's first and extraordinary technology by CreatBot.Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials. (The technology is patent protected and available by CreatBot only)



DAS annealing process features :

1)Instantaneously:Finished during printing process, no need secondary treatment in oven.

2)Completely:The annealing process point to every extruded filament, not the whole printed model. The internal structure of the whole model could not be fully crystallized or will deform in oven.

3)Controllable:The surrounding temperature can be adjusted to 0-200 °C. the different requirements of toughness and strength can be met by adjusting the DAS temperature function at different material parts.

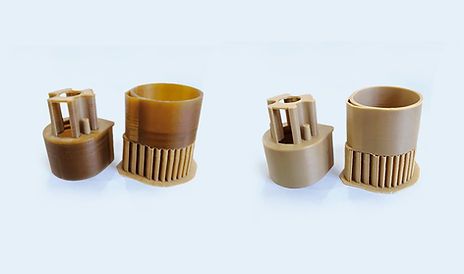

Before Annealing

After Annealing


Before Annealing

After Annealing

What concept do you need know first?

  • Heat control system: High temp. hotendhotbedhot chamber

  • Direct Annealing System

  • Cooling system: liquid coolingAir pump cooling

What parameters make us exciting?

  • Hotend max. 500°C with dual extruder

  • Heatbed max.200°C

  • Hot chamber max. 120°C

  • Build volume: 300 x 300 x 400 mm

  • Triple heat isolation and liquid cooling system

What new technology can we except?

The Direct Annealing System (DAS) is a revolutionary technology designed and patent protected by CreatBot. It is the most advanced technology applied to 3D printing high performance material.

What printing materials are available?

  • Engineering Plastics: PLA, PC, ABS, PA6, PETG, PVDF, POM-C, PP, TPU

  • High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF

  • Ultra performance material: Medical grade PEEK, PEEK, PEKK, PEEK-CF (Carbon fiber), PEEK-GF (glass fiber), etc

Smart Auto-rising dual extruders 500 ℃

The PEEK-300 equiped with CreatBot new technology smart Auto-rising dual extruders. Water cooling, DAS system, Auto-rising extruders. The dual nozzle temperature up to 500°C. You can print any 3D printer materials in the world. We can say it is best choice of polymer materials.


Hotbed 200 ℃

Common but necessary.
Base of printing big models with no warping.

Hot Chamber 120°C

Outstanding and important.
The protector of no cracking printing.

Cooling System

Cooling system is one of the important parts to constitute the whole thermal system. It is made of
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.

PEEK300_Hot Chamber.jpg
